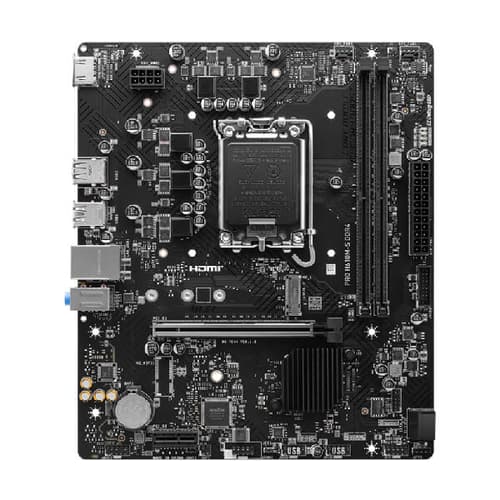

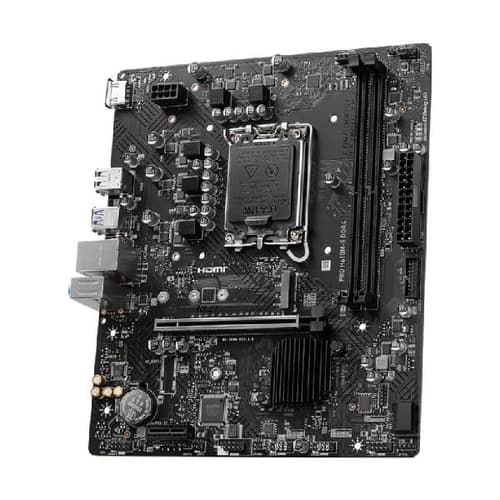

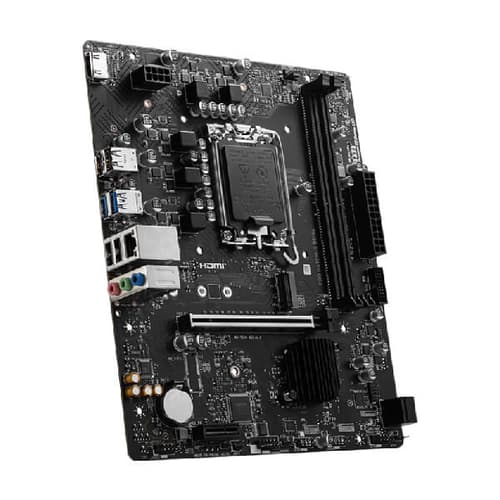

MSI Pro H610M-S DDR4 Motherboard

• 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

• 1x HDMI
• Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed

• 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• 1x M.2
• M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
• 2x SATA 6G

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports

• HDMI
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 2.0
• LAN port
• Audio Connectors
• USB 2.0

*** Features, Price, Specifications are subject to change without notice.
