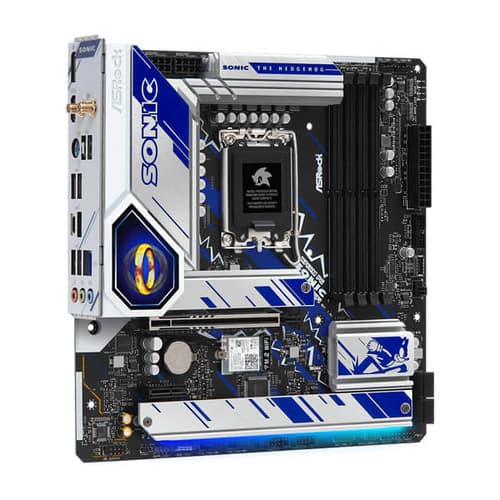

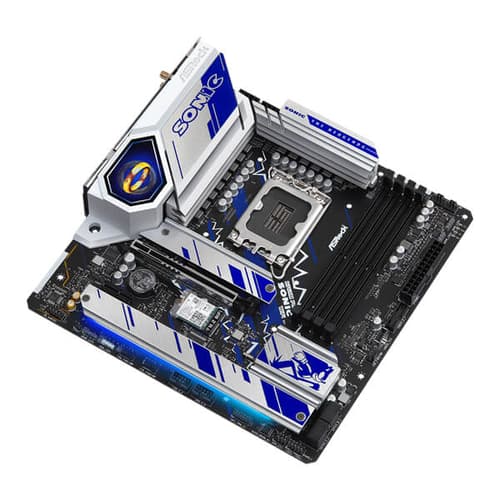

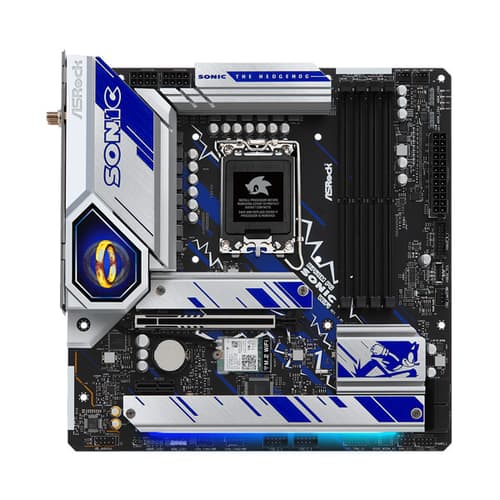

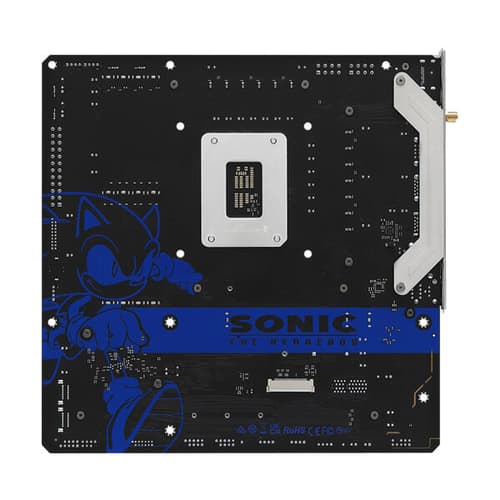

ASRock B760M PG Sonic WIFI Motherboard

Original price was: ₹21,000.00.Current price is: ₹14,999.00.

EMI is available on selected Credit Cards

100% Genuine Products Guaranteed

Description

Supports 14th Gen, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
12+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
-1 USB 3.2 Gen2 Type-A (Rear)
-6 USB 3.2 Gen1 (4 Rear, 2 Front)
-6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN,
802.11ax (WiFi 6E) + Bluetooth
Supports ASRock Auto Driver Installer

ASRock B760M PG SONIC WiFi is built using a 6 Layer PCB for excellent thermal control, better signal routing and extending DDR5 overclocking potential. 12+1+1 Dr.MOS CPU power phases ensures Velocity Boost states are always stable, maximizing potential out-the-box CPU performance. Generous heatsink coverage for VRM, M.2 SSDs and PCH is adorned in the SONIC design, with fun, eye-catching graphics.

Specifications:

Unique Feature	Superb Productivity – PCIe Gen5 (Graphics) – Dual Channel DDR5 Rock-Solid Durability – 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker
CPU	– Supports 14th Gen, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT)
Chipset	– Intel® B760
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 192GB – Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel® Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Phantom Gaming LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	– 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	– 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front)
Connector	– 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Rear Panel I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer
Accessories	– 1 x User Manual – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 3 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
