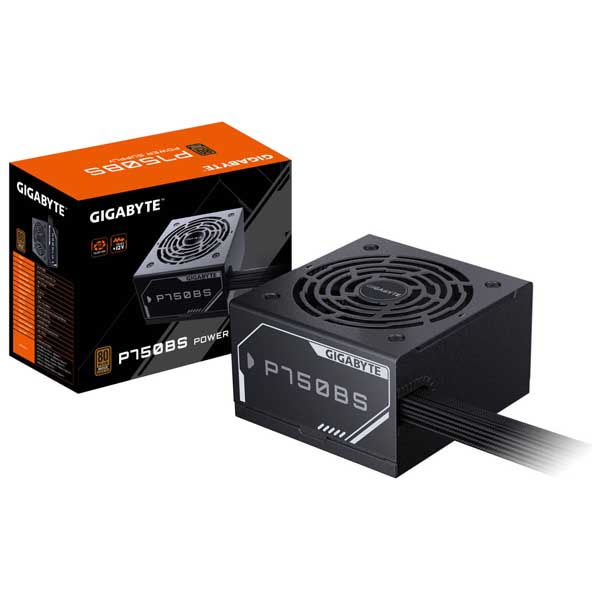

GIGABYTE GP-P750BS 750W Non-Modular 80 Plus Bronze Power Supply

GIGABYTE GP-P750BS 750W Non-Modular 80 Plus Bronze Power Supply

Feature

• 80 PLUS Bronze certified (230V EU)
• 120mm Silent Fluid Dynamic Bearing (FDB) fan
• Soft-textured embossed cables
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty

• The Gigabyte 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

  120MM FLUID DYNAMIC
  BEARING(FDB) FAN

  High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

  SOFT-TEXTURED EMBOSSED CABLES

  The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.

  Key Features

  Category	Specifications
  Model	GP-P750BS
  Type	Intel Form Factor ATX 12V
  Output Capacity	750W
  PFC	Active PFC (>0.9 Typical)
  Input Voltage	200–240 Vac
  Input Current	6 A
  Input Frequency	50–60 Hz
  Dimensions	150 × 140 × 86 mm
  Fan Type	120 mm Fluid Dynamic Bearing (FDB) Fan
  80 PLUS Certification	Bronze (230V EU)
  Efficiency	88% at Typical Load
  MTBF	>100,000 Hours
  Protections	OVP / OPP / SCP / UVP / OCP / OTP
  Power Good Signal	100–150 ms
  Hold Up Time	>16 ms
  Cable Type	Embossed, All Black
  ATX/MB 20+4 Pin	1 × 600 mm
  CPU/EPS 4+4 Pin	2 × (600 mm + 150 mm)
  PCI-E 6+2 Pin	4 × (500 mm + 150 mm)
  SATA Connectors	4 × (500 mm + 150 mm + 150 mm + 150 mm)
  SATA + Peripheral Connectors	3 × SATA + 1 × Peripheral (500 mm + 150 mm + 150 mm + 150 mm)
