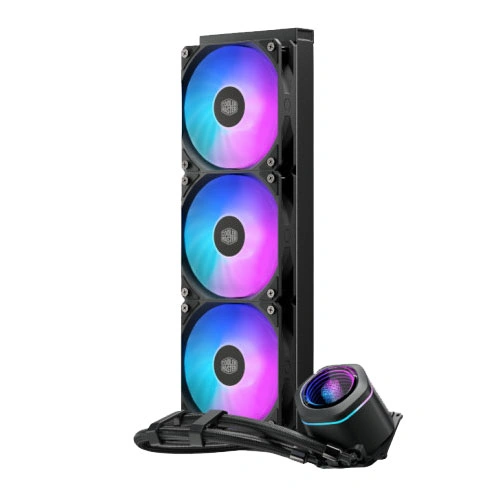

Cooler Master NEX 360 MasterLiquid Core ARGB CPU Liquid Cooler

CoolerMaster MasterLiquid Core Nex Series

• Dual Chamber Pump​
• Innovative Design​
• Flexible Pump Orientation​
• Easy Installation​
• Universal Socket Support​
• Optimum Tubing Length

Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.​

Innovative Design

An infinity mirror pump cover design brings stylish lighting and a modern touch to your build​

Flexible Pump Orientation

Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.

Patented design

Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality

Fully automated production and assembly of the pump with fully recorded production history.

Dual Chamber Pump

Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.

Optimum Tubing Length

400 mm tubing allows for effortless cooler installation in any orientation.

Easy Installation

With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless

• CPU Socket: Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156, AMD AM5 / AM4
• Radiator Material: Aluminum
• Radiator Dimensions: 360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
• Pump Dimensions: 83.6 x 78.5 x 62.9 mm​ (3.3 x 3.1 x 2.5 inch)
• Pump Profiles: Addressable RGB
• Pump Speed: 2800 ±10% RPM
• Pump MTTF: >35,000 Hours
• Pump Noise Level: 25 dBA (Max)
• Pump Rated Voltage: 12 VDC
• Fan Power Consumption: 7.2 W
• Pump Connector: 3-Pin ARGB + 4-Pin PWM
• Tube Length: 400 mm
• Fan Dimensions (L x W x H): 120 x 120 x 25 mm ​ (4.7 x 4.7 x 1 inch)
• Fan LED: Addressable RGB
• Fan Quantity: 360: 3 PCS
• Fan Speed: 650 ~ 1750 RPM ±10%
• Fan Airflow: 122.4 m³/h (71.9 CFM) (Max)
• Fan Air Pressure: 1.86 mmH₂O (Max)
• Fan MTTF: >40,000 Hours
• Fan Noise Level: 27.2 dBA (Max)
• Fan Bearing Type: Rifle Bearing
• Fan Connector: 7-Pin PWM + ARGB
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.26 A
• Fan Safety Current: 0.37 A
• Fan Power Consumption: 3.12W
