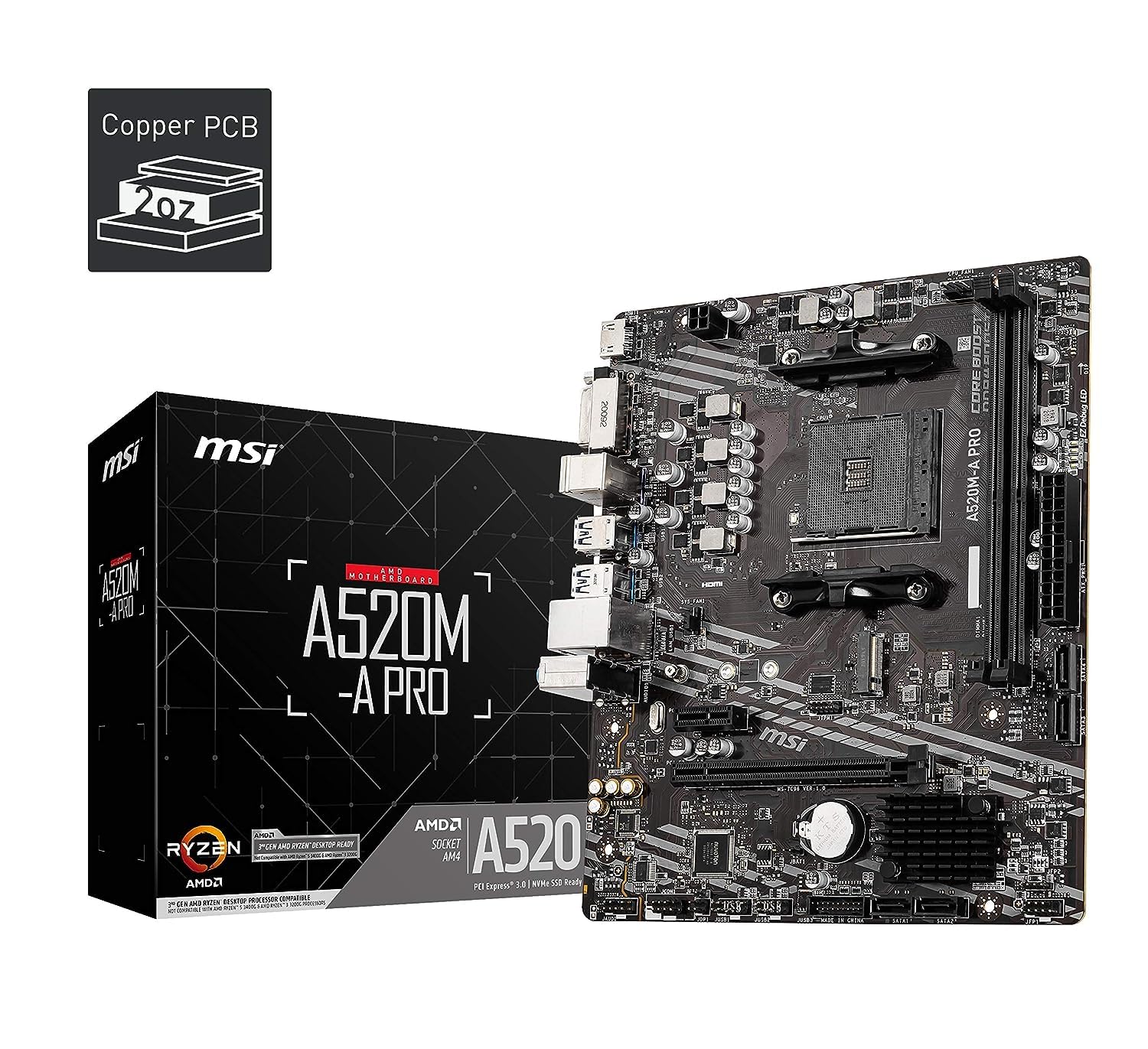

MSI A520M-A PRO DDR4 Motherboard AM4Socket

Original price was: ₹7,200.00.Current price is: ₹4,200.00.

Out of stock

EMI is available on selected Credit Cards

100% Genuine Products Guaranteed

Description

Model
Brand	MSI
Model	A520M-A PRO
Supported CPU
CPU Socket Type	AM4
CPU Type	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Chipsets
Chipset	AMD A520
Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
	Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
	1DPC 1R max speed 4600 MHz
	1DPC 2R max speed 3866 MHz
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

	* Actual support may vary by CPU.
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCIe 3.0 x1 slot
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M) (from AMD Processor)
	Supports PCIe 3.0 *
	Supports SATA 6Gb/s
	Supports 2242/2260/2280 storage devices

	* The supported specification depends on installed processor.
SATA RAID	0/1/10
Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic:

	1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
	1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
	Maximum shared memory of 16GB

	1 Available for the processor with integrated graphics.
	2 Graphics specifications may vary depending on the CPU installed.
Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels
Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

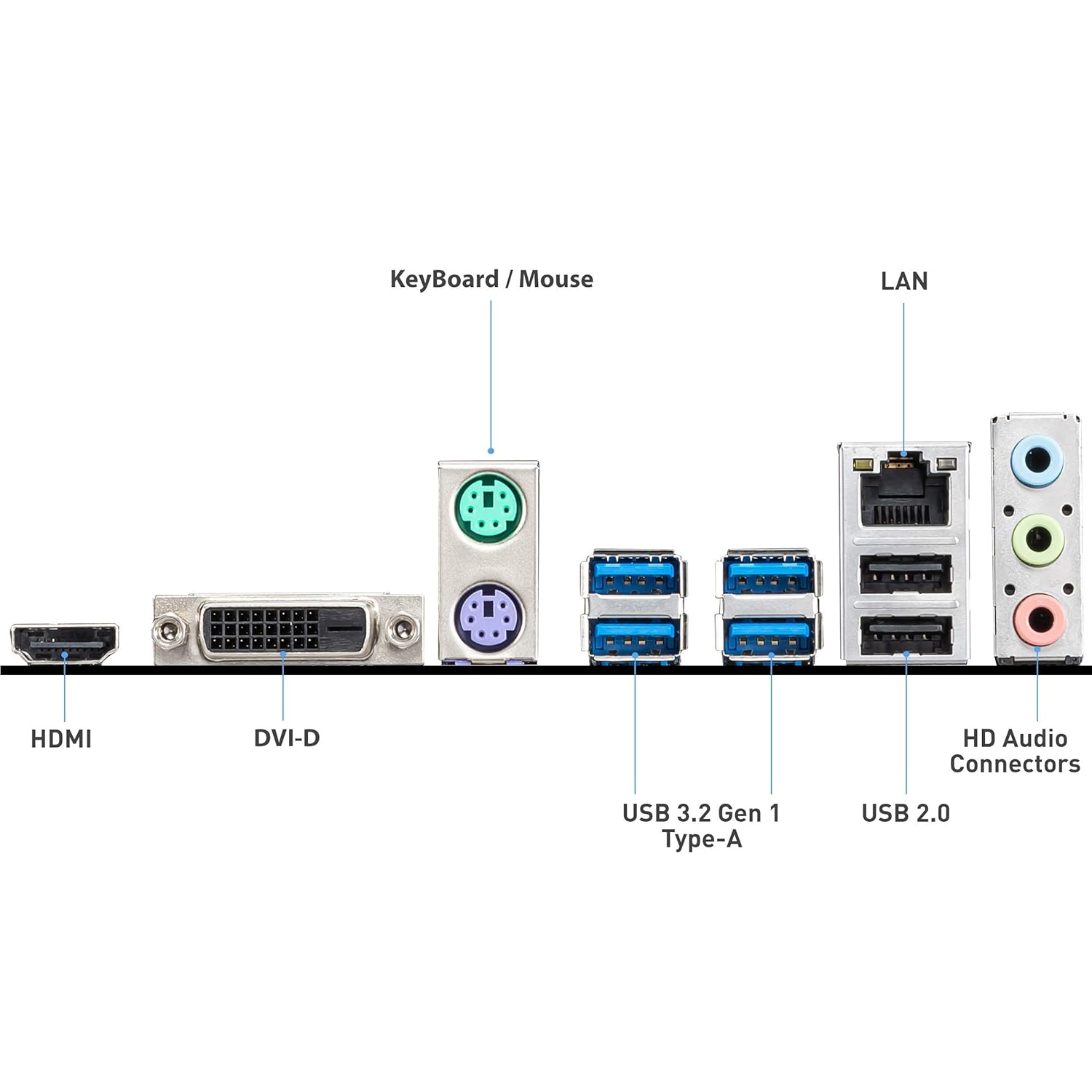

Rear Panel Ports
Back I/O Ports	6 x USB 3.1 Gen 1 Type-A
USB 3.0	6 x USB 3.0
Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector
	1 x 4-pin system fan connectors
	1 x Front panel audio connector
	2 x System panel connectors
	1 x Chassis Intrusion connector
	1 x TPM module connector
	1 x Clear CMOS jumper
Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	9.3″ x 7.9″
Power Pin	1 x 24-pin ATX main power connector
	1 x 4-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11	Supported
Features
Features	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors

	Supports DDR4 Memory, up to 4600(OC) MHz

	Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

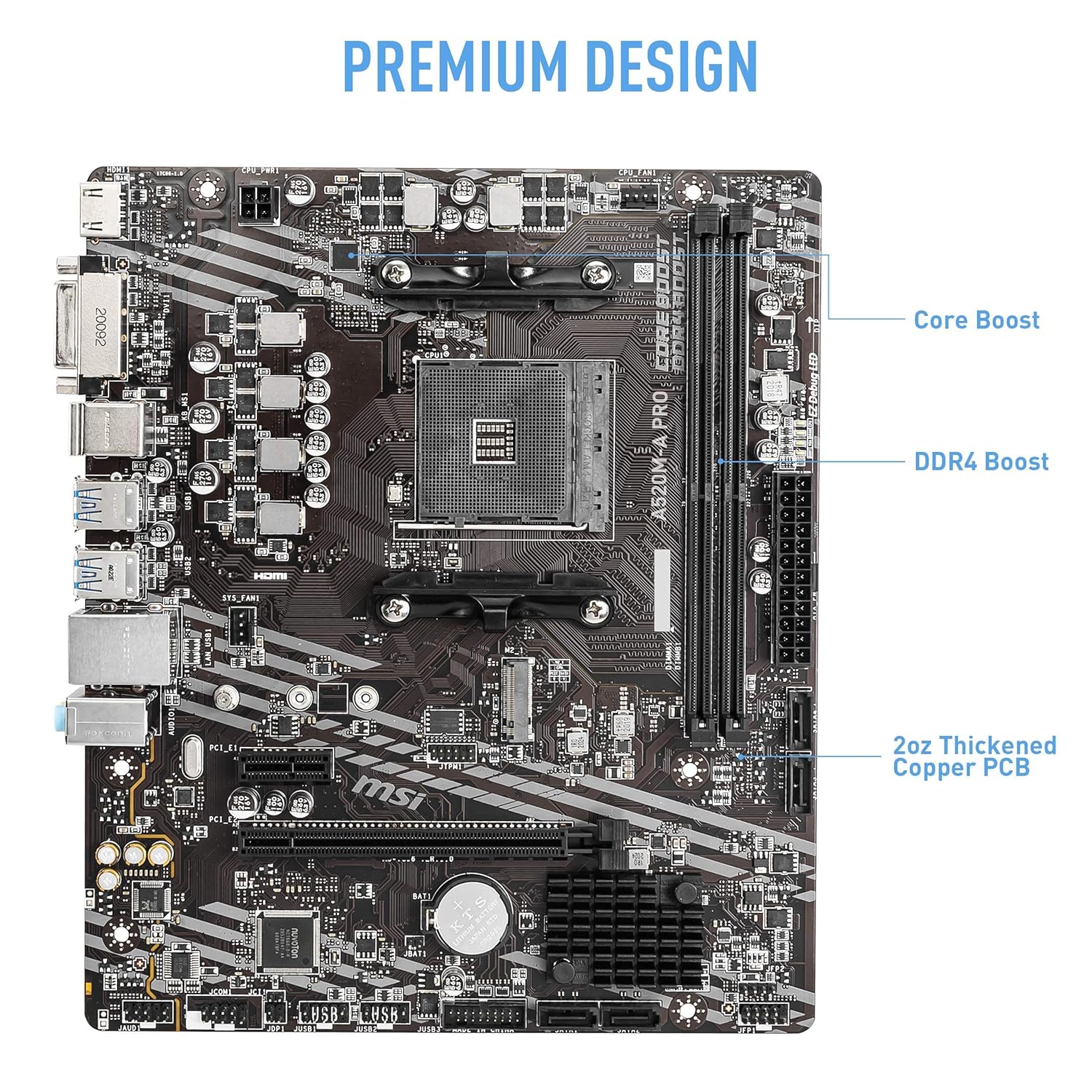

	Core Boost: With premium layout and digital power design to support more cores and provide better performance

	DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

	2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability

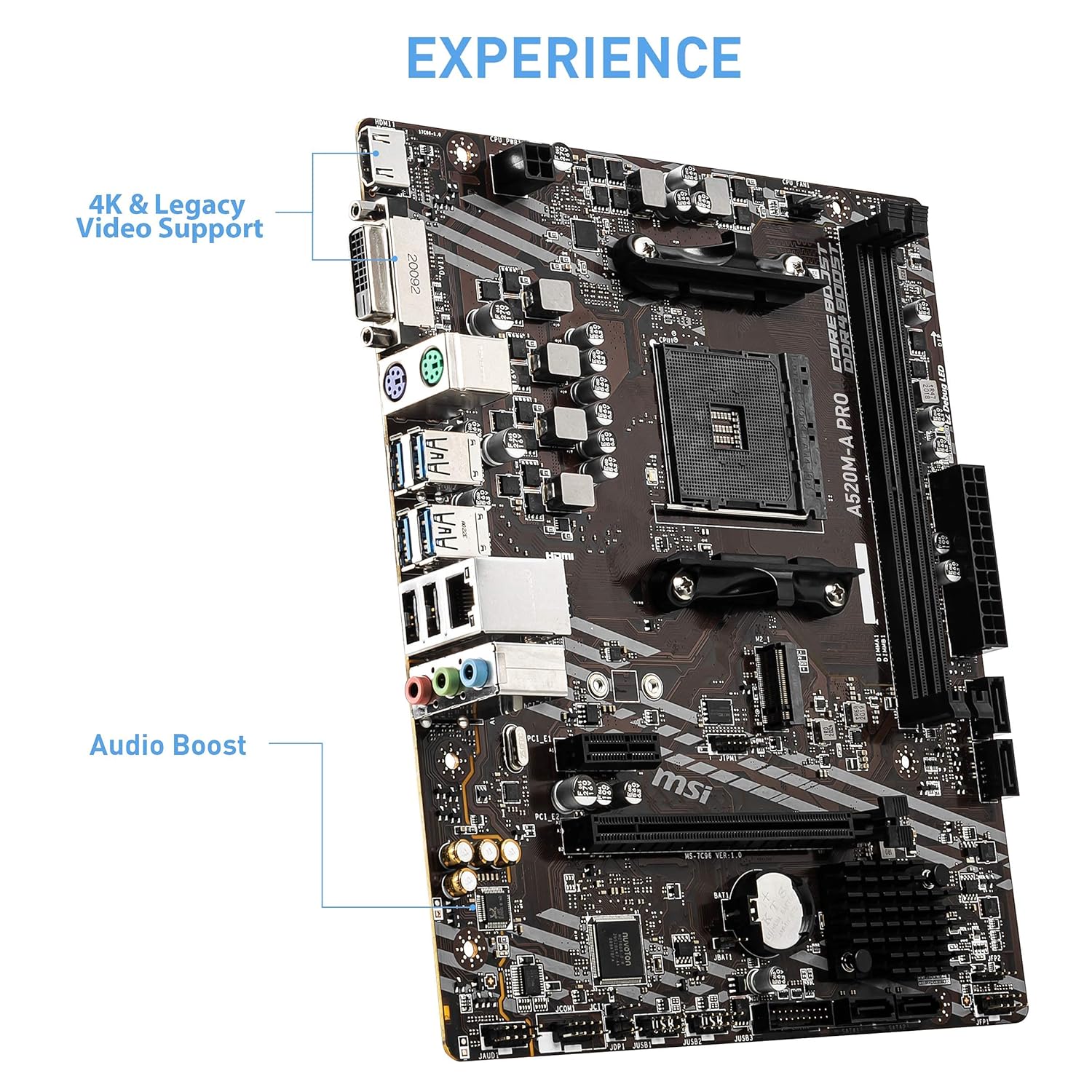

	Audio Boost: Reward your ears with studio grade sound quality

	Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
